Updated Powershell script with June 2015 drivers for deploying the Surface Pro 3 with MDT 2013

On June 25th, Microsoft released another driver update for the Surface Pro 3 here. As usual, i’ve updated my PowerShell script to allow you to deploy this awesome device using minimal effort via a MDT 2013 solution all built with PowerShell.

running the powershell script.png



I’ve updated the script somewhat to include a few more variables to allow for easily changing the source drivers going forward, to change them simply input the correct values for the following variables:



new vars.png



You don’t need to change this script now however, just download it, and run it on a Windows Server 2012 R2 in Windows PowerShell ISE as administrator, the script will do the rest.



script running.png



If you want to know how the script works then please see this post for more details. When the script is finished running it should look like this.



all complete.png

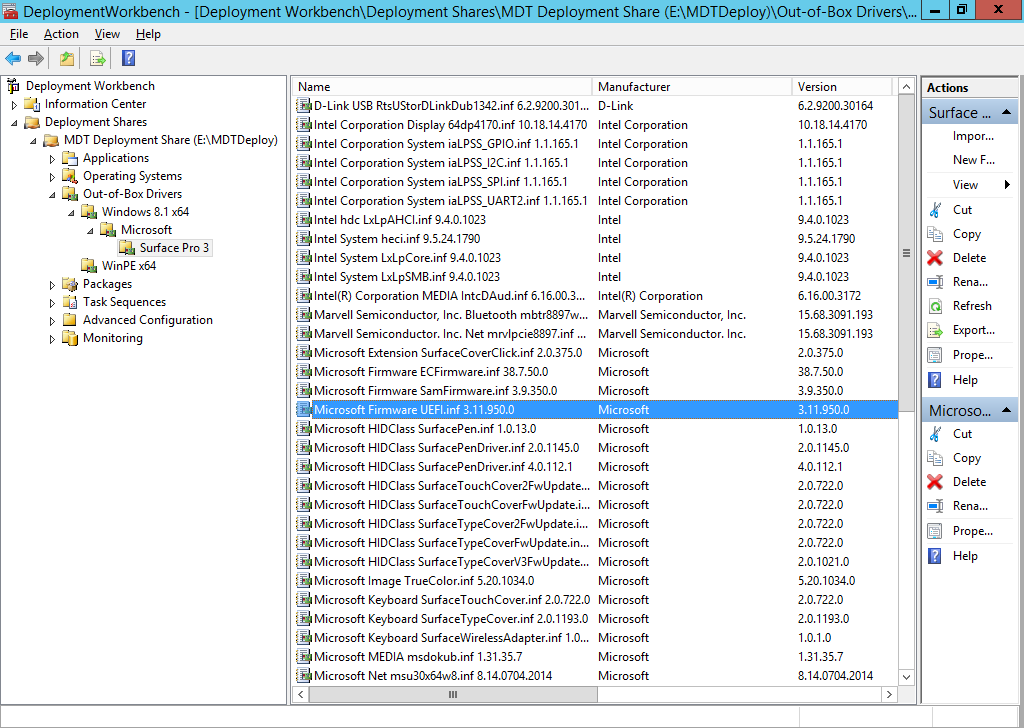

you can review the installation of MDT 2013 which it has created for you complete with all the June 2015 drivers for the Surface Pro 3 by opening up the Deployment Workbench and seeing for yourself.



MDT deployment workbench.png

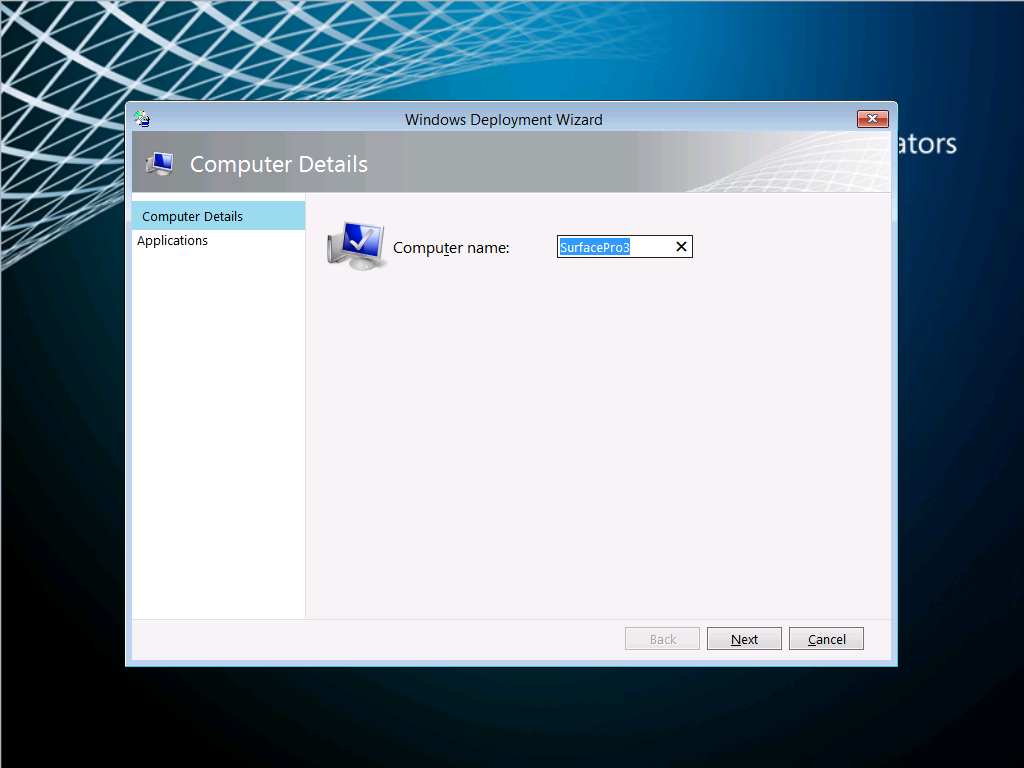

which means you can PXE boot a Surface Pro 3 straight away and start imaging it



deploying it with mdt.png



The actual driver updates are listed below

FIRMWARE:

EC       38.7.50.0   ECFirmware.inf
SAM      3.9.350.0   SamFirmware.inf
TOUCH    426.27.66.0 TouchFirmware.inf
UEFI     3.11.950.0  UEFI.inf

DRIVERS:

Accessory SurfaceAccessoryDevice        2.0.1012.0     SurfaceAccessoryDevice.inf
Accessory SurfaceCoverAudio             2.0.722.0      SurfaceCoverAudio.inf
Accessory SurfaceCoverClick             2.0.375.0      SurfaceCoverClick.inf
Accessory SurfaceCoverTelemetry         2.0.722.0      SurfaceCoverTelemetry.inf
Accessory SurfaceTouchCover             2.0.722.0      SurfaceTouchCover.inf
Accessory SurfaceTouchCover2FwUpdate    2.0.722.0      SurfaceTouchCover2FwUpdate.inf
Accessory SurfaceTouchCoverFwUpdate     2.0.722.0      SurfaceTouchCoverFwUpdate.inf
Accessory SurfaceTypeCover              2.0.1193.0     SurfaceTypeCover.inf
Accessory SurfaceTypeCover2FwUpdate     2.0.722.0      SurfaceTypeCover2FwUpdate.inf
Accessory SurfaceTypeCoverFwUpdate      2.0.722.0      SurfaceTypeCoverFwUpdate.inf
Accessory SurfaceTypeCoverV3FwUpdate    2.0.1021.0     SurfaceTypeCoverV3FwUpdate.inf
Accessory SurfaceWirelessAdapter        1.0.1.0        SurfaceWirelessAdapter.inf
Audio     DockingStationAudioDevice     1.31.35.7      msdokub.inf
Audio     HdAudio                       6.0.1.7198     HDXMSSDS1.inf
Camera    LifeCam                       5.20.1034.0    TrueColor.inf
Display   DisplayAudio                  6.16.00.3172   IntcDAud.inf
Display   Graphics                      10.18.14.4170  64dp4170.inf
Display   SurfaceDisplayCalibration     2.0.1002.0     SurfaceDisplayCalibration.inf
Network   Bluetooth                     15.68.3091.193 mbtr8897w81x64.inf
Network   SurfaceEthernetAdapter        8.10.0830.2013 msu64w8.inf
Network   SurfaceGigabitEthernetAdapter 8.14.0704.2014 msu30x64w8.inf
Network   WiFi                          15.68.3091.193 mrvlpcie8897.inf
Pen       SurfacePen                    1.0.13.0       SurfacePen.inf
Pen       SurfacePenSettingsDriver      4.0.112.1      SurfacePenDriver.inf
System    CapacitiveHomeButton          2.0.1179.0     SurfaceCapacitiveHomeButton.inf
System    CardReader                    6.2.9200.30164 RtsUStor.inf
System    GPIO                          1.1.165.1      iaLPSS_GPIO.inf
System    I2C                           1.1.165.1      iaLPSS_I2C.inf
System    LowPinCount                   9.4.0.1023     LxLpCore.inf
System    ManagementEngine              9.5.24.1790    heci.inf
System    SATA_AHCI                     9.4.0.1023     LxLpAHCI.inf
System    SMBus                         9.4.0.1023     LxLpSMB.inf
System    SurfaceIntegrationDriver      2.0.1182.0     SurfaceIntegrationDriver.inf
System    SurfacePciController          2.0.1151.0     SurfacePciController.inf



Download the script



Here’s the script, download it, unzip, run it in Windows PowerShell ISE.



Attached File  Setup MDT 2013 for Microsoft Surface Pro 3 – June 2015.zip



enjoy !

cheers

niall
