How can I install System Center 2012 R2 Configuration Manager ?

Introduction



Today at Tech Ed Europe 2013 in Madrid, Brad Anderson announced the availability of System Center 2012 R2 Configuration Manager preview (amongst other things). In this post I will focus on installing the R2 preview release on Configuration Manager 2012 SP1 (which just so happens to have Cu2 installed). In the past, R2 releases for System Center products traditionally add cool features to an otherwise complete product so this is going to be exciting.



Note: This is a Preview release and therefore should not be installed in production, you should only test this preview version of R2 in a LAB.



Step 1. Get the goodies

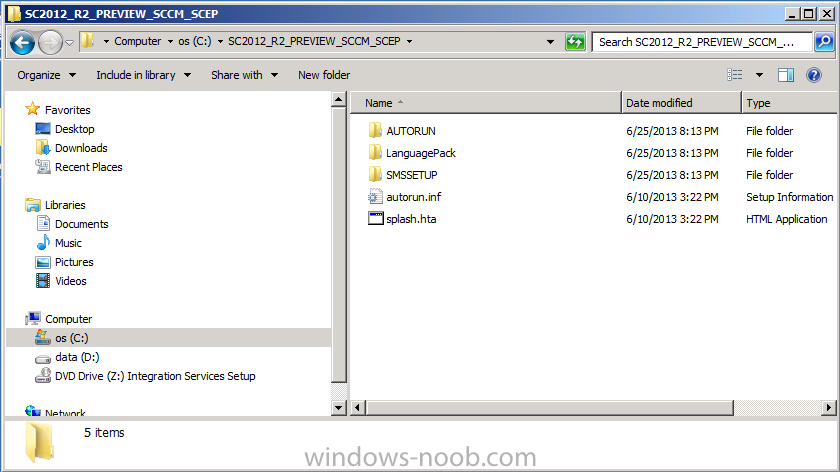

You can get the System Center 2012 Configuration Manager R2 Preview release from here. Once you’ve downloaded the bits extract them to somewhere like C:\SC2012_R2_Preview_SCCM_SCEP



extracted files.png



Once done, download Windows ADK 8.1 from here.



Step 2. Uninstall Windows ADK 8.0



Before you install R2, you’ll need to satisfy certain prerequisites, and one of those is ADK 8.1, and as part of that you’ll need to uninstall Windows ADK 8.0, it’s not sufficient to simply install ADK 8.1 over ADK 8.0.



Open control panel and locate Windows Automated Installation Kit, click it and choose Uninstall (it’s the one with version 8.59.25584).



uninstall WADK.png



Once uninstalled, no need for a reboot.



Step 3. Install Windows ADK 8.1



Now that you’ve removed the previous version, download the new ADK to support Windows 8.1 and Server 2012 R2 from here.

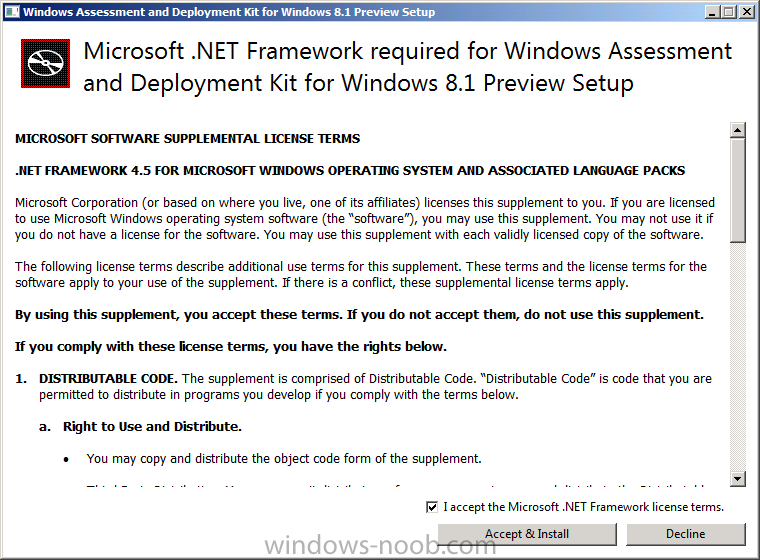

Run adksetup and accept the .NET 4.5 FrameWork agreement, make sure you’ve 2.25 GB free space on your C:\ drive before attempting to continue otherwise you may get a strange ASIA failure message (if you do get any failures, check %temp% for the .net installation logs to see why it failed.)



net framework.png

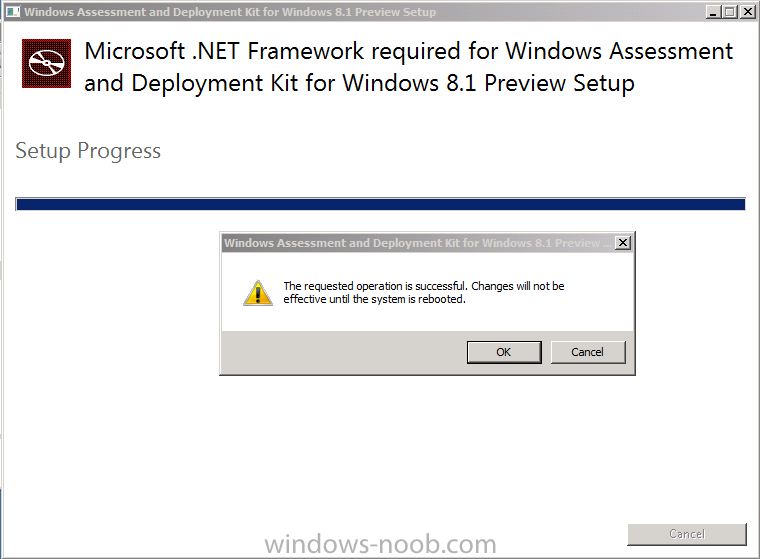

reboot when requested



reboot after .net 4.5.png

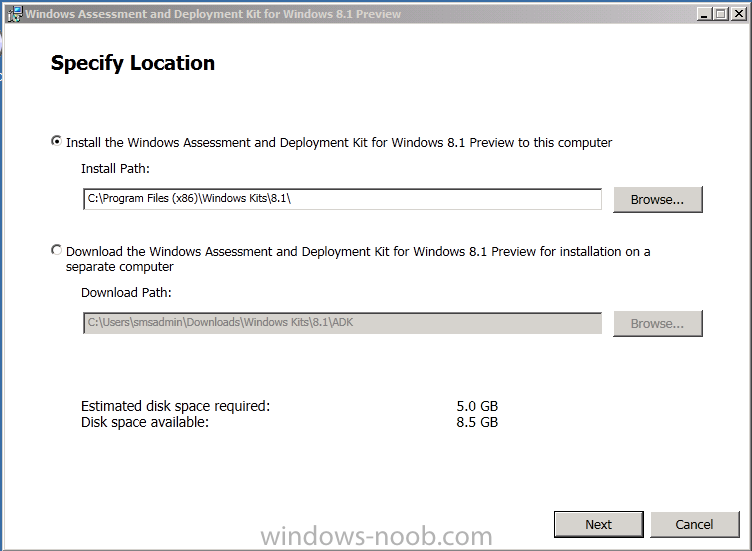

after the reboot, login and you’ll see the specify location screen for the new Windows ADK installation



specify location.png

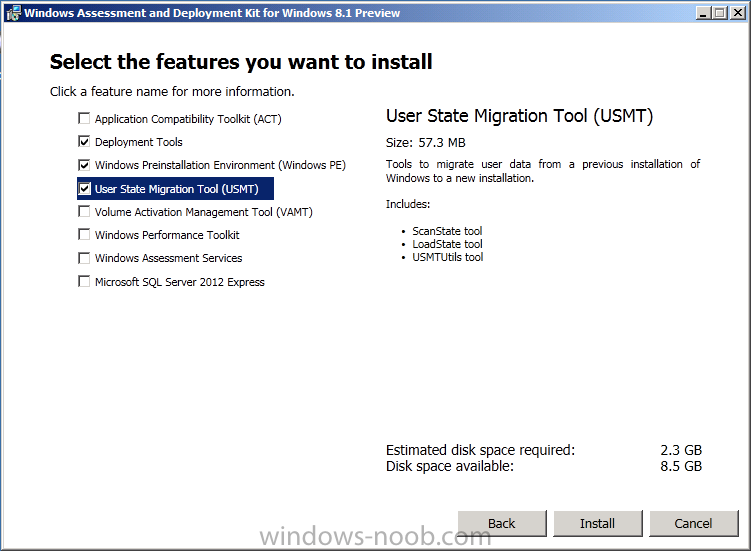

click next through the wizard and select at least the following 3 components

  • User State Migration Tool (USMT)
  • Windows Deployment Tools
  • Windows PreInstallation Environment (Windows PE)

3 things to install.png

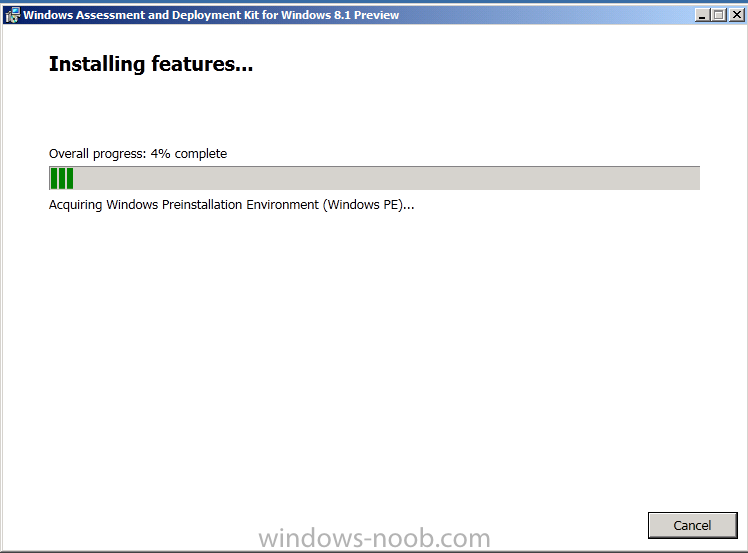

and the installation should continue…slowly but surely…



installing ADK 8.1.png



click close when done.



Tip: Installation of the ADK will produce several logs for the separate components in %temp%\adk if you have any issues with the installation of the ADK open those logs individually in CMTrace to look for any errors during the installation.



ADK 8.1 done.png





Step 3. Install R2

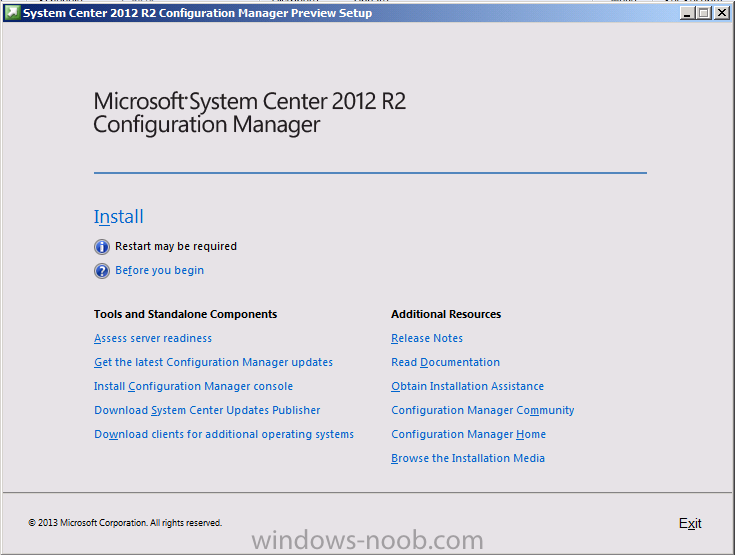

Now that we’ve fixed Windows ADK, browse to the extracted System Center 2012 Configuration Manager R2 files and click on splash.hta to start the wizard



System Center 2012 R2 Configuration Manager setup.png

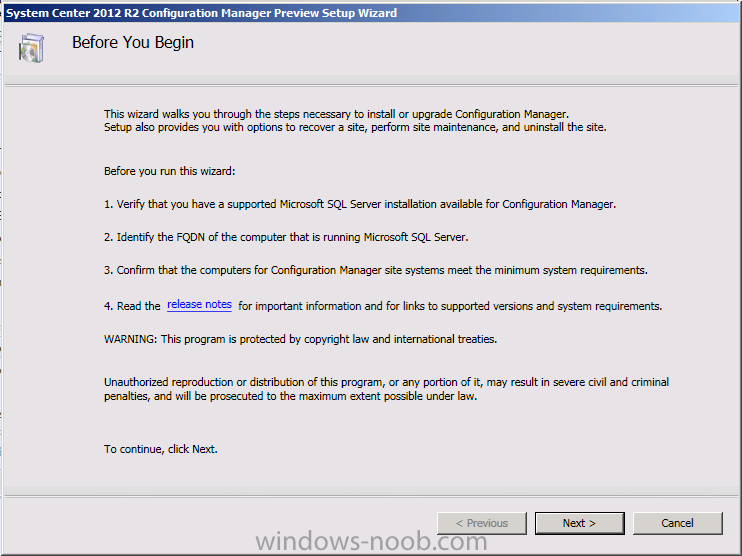

and click on Install to start the installer, you will be presented with the before you begin screen, click next



before you begin.png

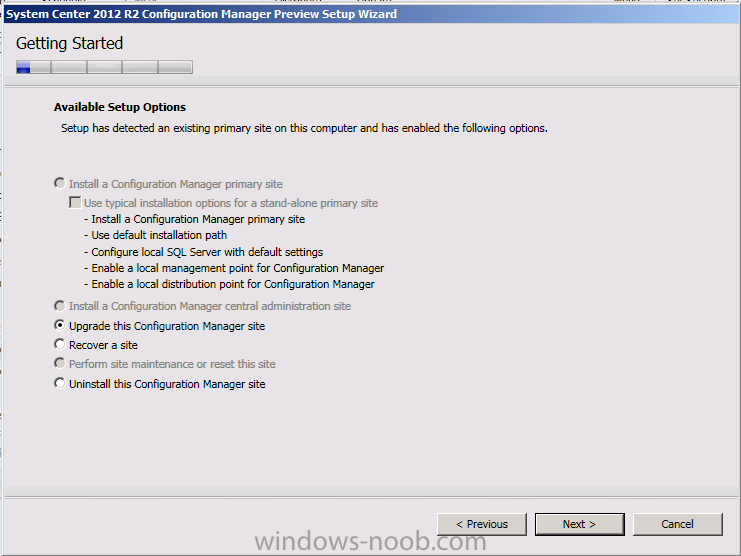

and then you’ll see the available setup options on the Getting started screen, it should auto detect that you have a primary installed and that you are upgrading the site



getting started.png



you can choose whether to input your license key or not, I entered the key it works fine



install the licensed edition of this product.png



accept the EULA to continue






and place checkmarks in the products listed for Prerequisite licenses



prerequisite licenses.png



choose to download the setup prerequisites locally or from a previously downloaded location



prerequisite licenses.png

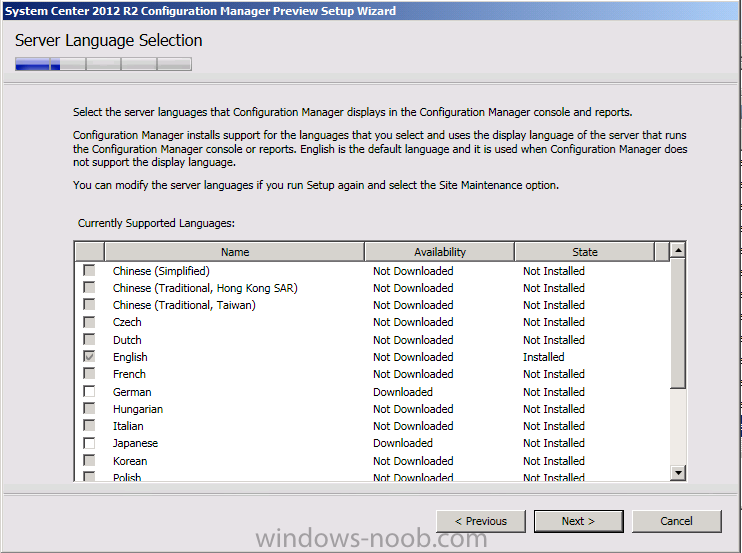

and then select the server languages that Configuration Manager will support



server language selection.png

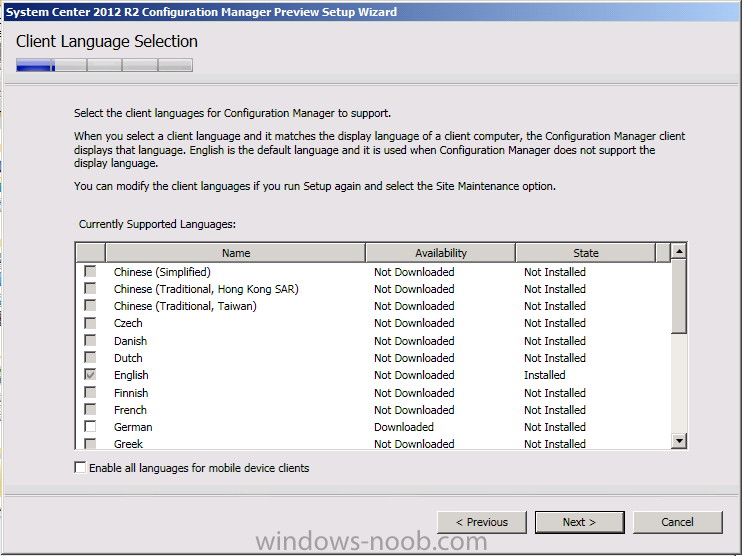

and then the client languages



client language selection.png



review the settings summary



settings summary.png

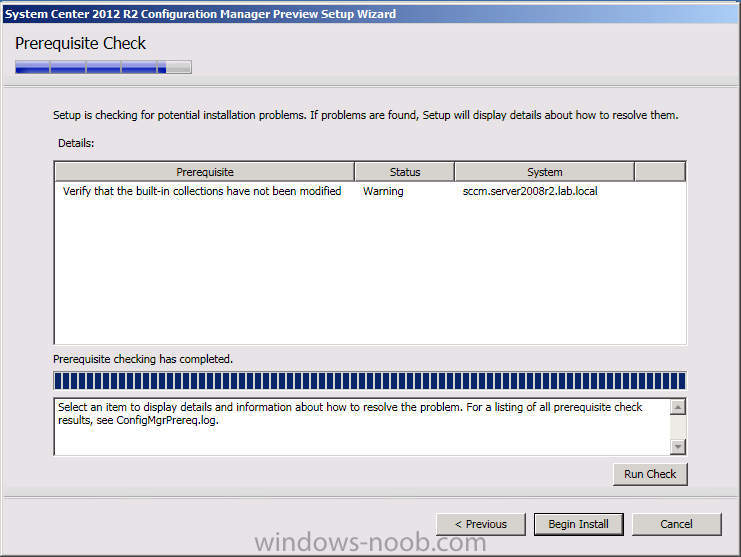

and the Prerequisite check will complete, it may list warnings (which are usually ok to ignore) or errors (failures, which you must fix). Click Begin install to continue (in the screenshot below I’ve modified a system collection, it’s ok, and it’s ok to continue)



prerequisite check.png

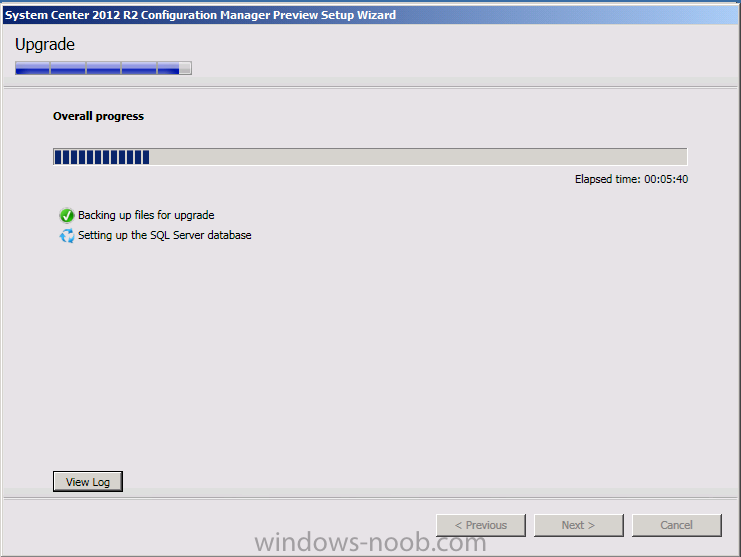

time for a siesta (if you are in Madrid :-)) while it installs, as this will take some time…,



R2 installing.png

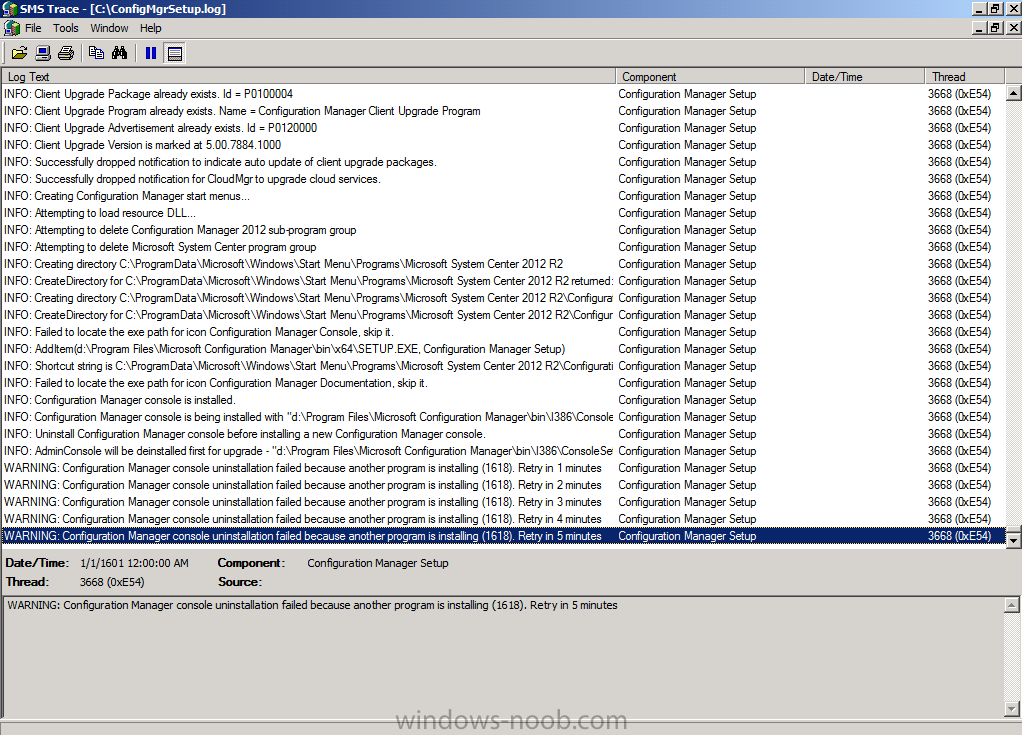

click on View Log to view the installation in CMTrace



cmtrace of r2 installation.png

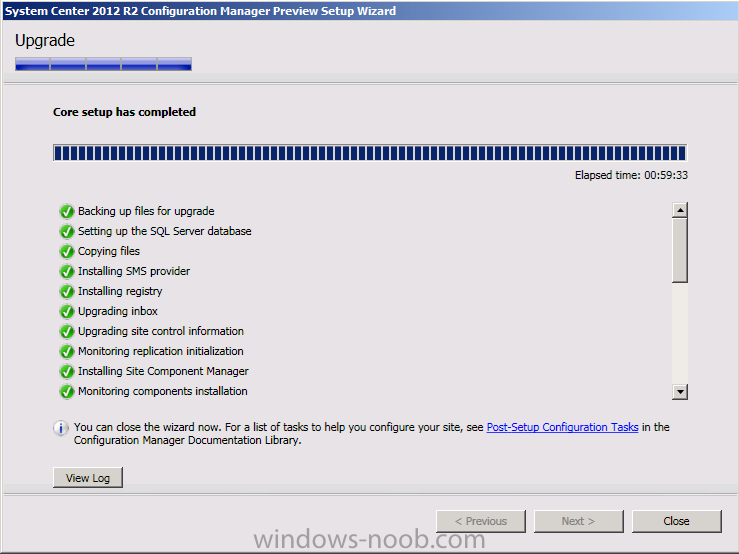

Once the installation of System Center 2012 R2 Configuration Manager is done you’ll see the following, I’d recommend you scroll up and down to verify all listed components are green, close the wizard when you can.



close the wizard.png



and start the new console via the new Start menu link, notice the R2 reference



Microsoft System Center 2012 R2.png



the console appears, congratulations you’ve installed System Center 2012 R2 Configuration Manager. Notice the new build number.



build number 7884.png

cheers

niall.
